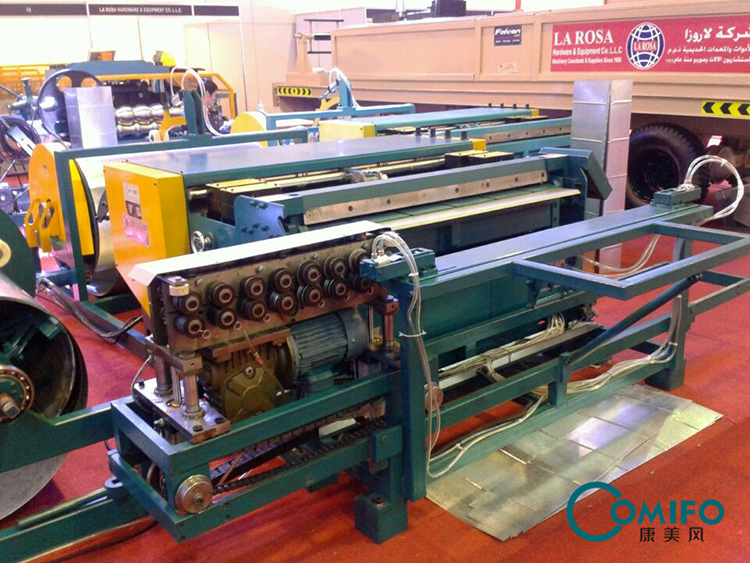

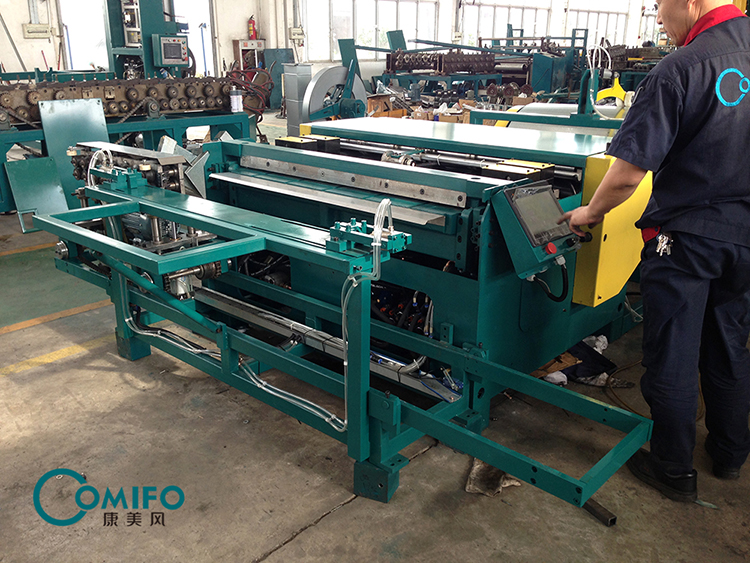

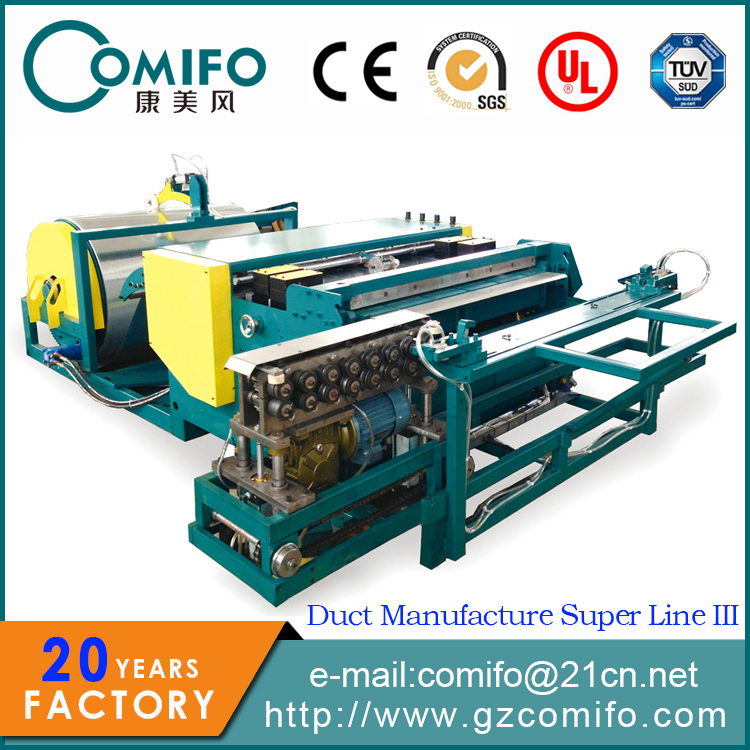

Duct Manufacture Super Line III
Products Information：
Super line III consists of cradle style decoiler , straightening , beading , punching , notching ,folding , hydraulic shearing and pittsburgh lock forming type 1 ( forms pittsburgh lock ) . It processes maximum coil with 1300mm or 1600mm galvanized steel for 18 to 30 gague material into blank for TDF integrated flange duct , TTF /LT mate flange duct or angle iron flange duct .
| Model No. | Max coil width | Thickness Range | Speed | Shearing Tolerance | Diagonal Tolerance | Floor Space |
| CSL3-1.2*1300 | 1300mm | 0.4*1.2mm ( 18-30ga ) |
0-18m /min ( 0-59 FPM) |
±0.5mm | ±0.5mm | 4000*2300*1400 |
| CSL3-1.2*1600 | 1600mm | 0.4*1.2mm ( 18-30ga ) |
0-18m /min ( 0-59 FPM) |
±0.5mm | ±0.5mm | 4000*2600*1400 |
Features :
1. Motor driven decoiling , selectable coils stand by , maximum capacity of 5-ton per station ( optional : up to 10-ton per station )
2. Bends right angle lock
3. Pittsburgh lock former , forms pittsburgh lock
4. Optimizes floor space by inline position of machines , guarantees high efficiency
5. Accurate PLC control unit , preset available profiles and folding style , notching size , punching size , cutting dimension on touchscreen

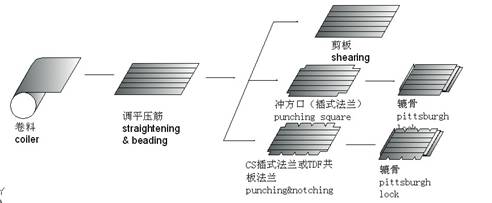

Stations:
coil - straightening - beading - punching square - notching - folding - shearing - pittsburgh lock forming
