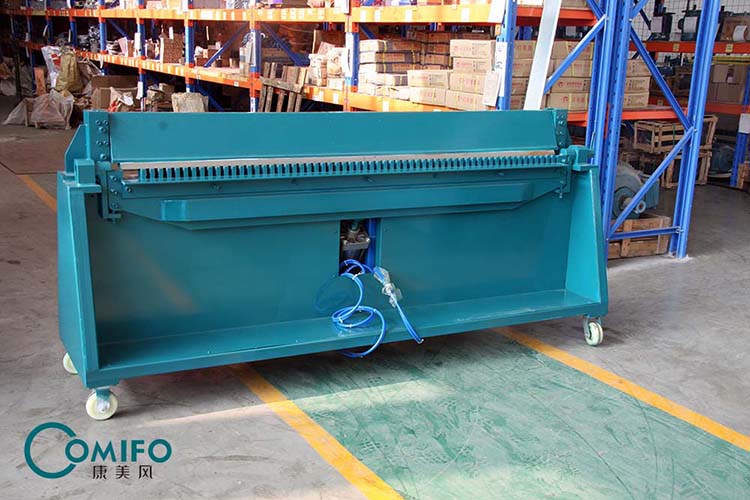

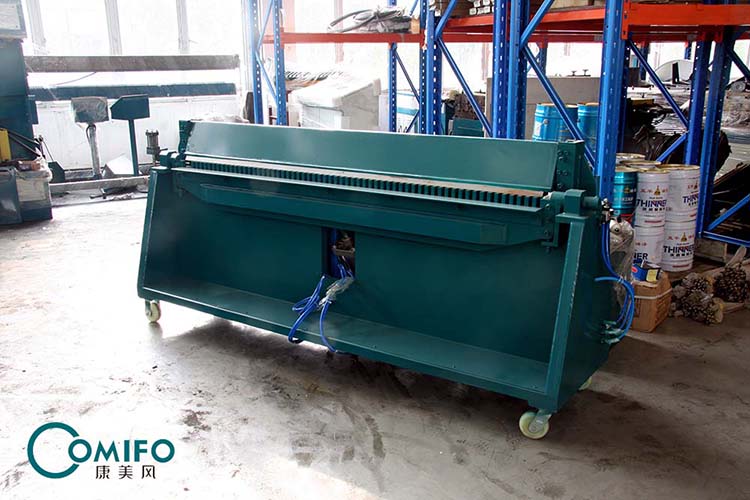

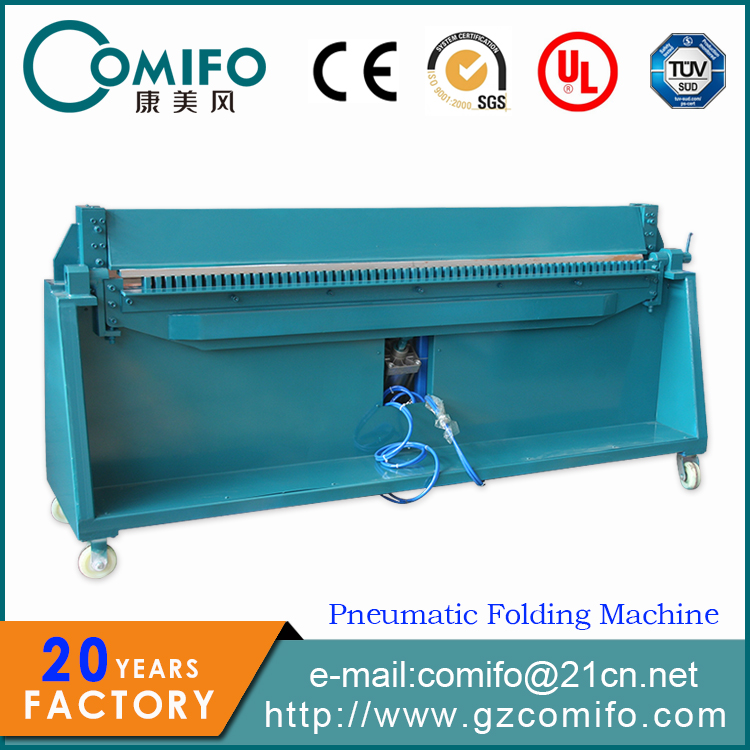

Pneumatic Folding Machine
Products Information：
The TDF / GDF wrap brake is designed to allow a single operator to accurately place and fold flat blanks with TDF or GDF rollformed flanges into L-shape or full wrap duct sections.
Features:
Heavy duty welded steel frame , solid top beam
Maintenance-free hydraulically powered folding beam

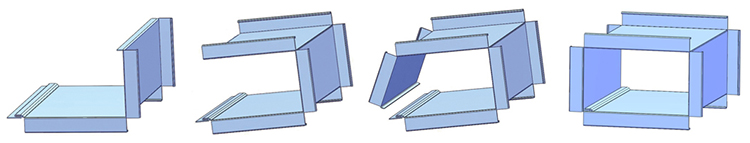

"L" section and "口“ shape full ductwork
Patented Sliding Section provide adjustable notch locators dor TDF flange or GDF flange
| Model No. | Max Coil Width | Minumum fold duct | Thickness Range |
| CPF-1.2*1600 | 1600mm | 140*140mm | 0.4-1.2mm (18-30Ga) |
| CPF-1.2*2000 | 2000mm | 140*140mm | 0.4-1.2mm (18-30Ga) |
